Scribe Class Reference
Namespace | ohm::flip |
Declared in | ohm/flip/Scribe.h |
See Also |
Overview
The Scribe class implements the undo/redo system in the Flip framework. One or more scribe can associated to any object of the model, which implements a per object history.
The most common use of a Scribe is on the root object of the model.
The following sections will only document the public API.

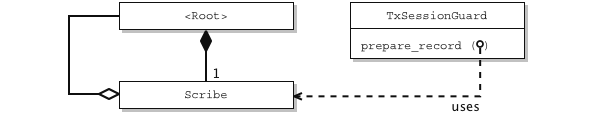

Partial Class Diagram
Methods Overview
Constructor
Manipulating
Undo/Redo
Methods
Scribe constructor
Constructs a Scribe over object . This will maintain an history associated to that object. object is usually the root object model.
Scribe (Object & object); |
annotate
Annotate a current transaction with a pair key / value . The transaction must be annotated before it is commited, should the transaction be part of the undo system.
A transaction may contain any number of key / value pair.
void annotate (const std::string & key, const std::string & value); |
has_undo / has_redo
Returns true is the undo (respectively redo) system contains at least one transaction, false otherwise.
bool has_undo () const; |
bool has_redo () const; |
get_undo_annotation / get_redo_annotation
Fills annotation_sptr with the first available transaction metadata of the undo (respectively redo) system.
void get_undo_annotation (AnnotationSPtr & annotation_sptr); |
void get_redo_annotation (AnnotationSPtr & annotation_sptr); |
This function does not pop the history, and is usually used to display the annotation in the GUI Menu Bar for the Undo and Redo menu item.
In a nutshell, the AnnotationSPtr type is a shared pointer on a key / value map;
undo_history / redo_history
Applies the first available transaction of the undo (respectively redo) system, and fills annotation_sptr with the ftransaction metadata.
Returns 0 if the operation succeeded, an error code otherwise.
int undo_history (AnnotationSPtr & annotation_sptr); |
int redo_history (AnnotationSPtr & annotation_sptr); |
This function will attempt to correct any error to at least fullfil structural validation when possible by modifying the transaction.
In a nutshell, the AnnotationSPtr type is a shared pointer on a key / value map;
